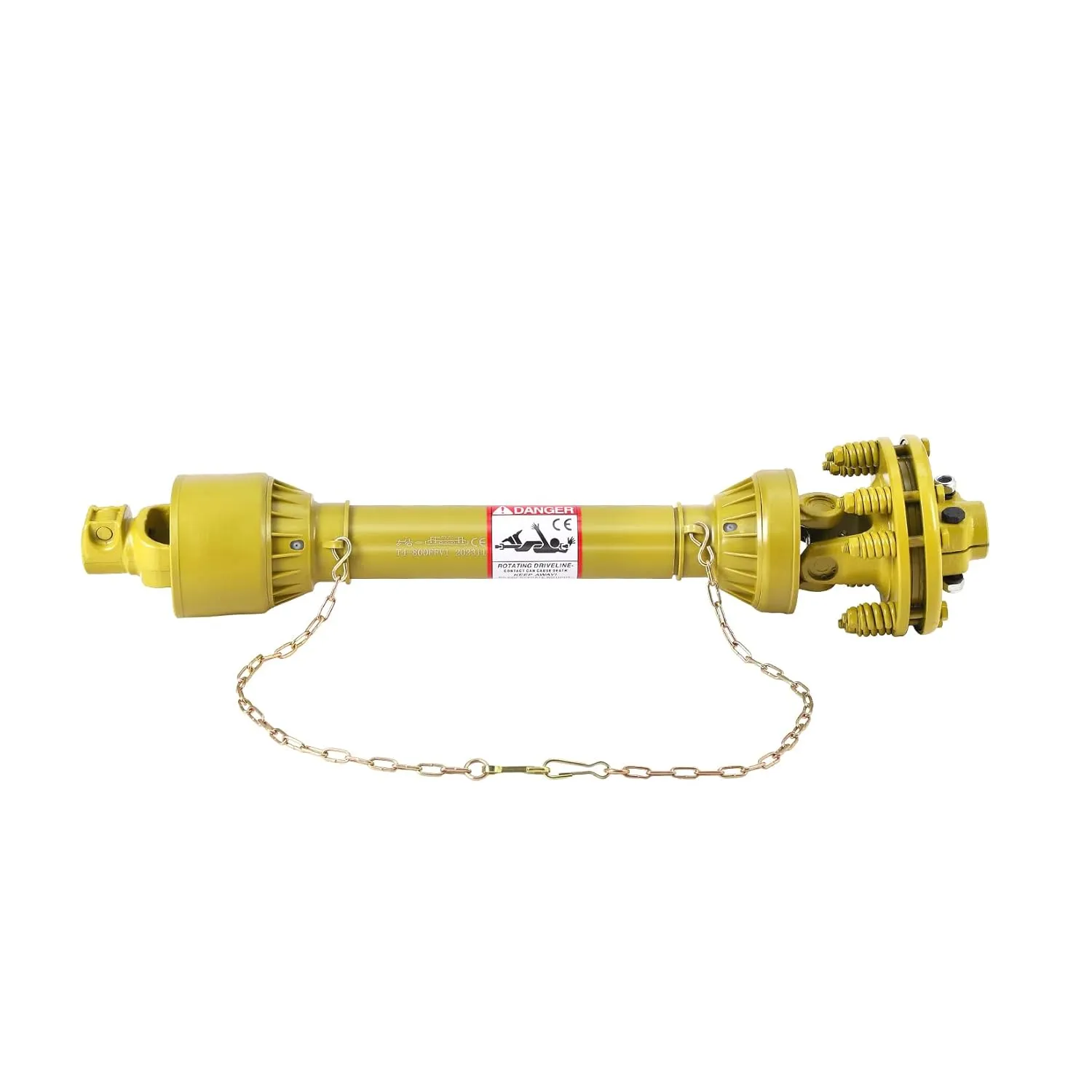

- Reliable and Certified Construction: This CE-certified PTO shaft is meticulously forged for exceptional durability, featuring a slip clutch, a solid 20CrMnTi carburized steel universal joint, and a Q345 steel tube shield. Designed to meet the demanding needs of various agricultural machinery, it provides a robust and dependable solution for your farming tasks.
- Precision 6-Spline Ends: With 6-spline ends—1-3/8" x 6 Spline for both the tractor and implement ends—our brush hog PTO shaft ensures seamless compatibility with implements and tractors of the same size. This design delivers outstanding driving force for enhanced machinery performance, maximizing efficiency during operation.
- Adjustable Length and Power: This tiller PTO shaft features a compressed length of 31.5" and an extended overall length of 41", with a friction disc diameter of 5.5". Crafted with a telescoping steel tube, universal joint, and yokes, it provides 35 Hp (26 kW) and 460 Nm torque at 540 rpm, as well as 53 Hp (39 kW) and 360 Nm torque at 1000 rpm, allowing for independent speed control on each side of the PTO drive line.
- Easy Assembly and Enhanced Safety: Engineered for high-efficiency power transmission, our PTO extender shaft allows for straightforward assembly and direct replacement. The integrated slip clutch offers an additional layer of safety by preventing damage escalation, while the included security chain and protective plastic shield enhance safety during operation.
- Versatile Applications: Designed to facilitate power transfer from the tractor to various PTO-powered attachments, this PTO shaft is widely used in mowers, rotary tillers, tractors, and more. Effectively control machine speed and power with this reliable shaft, which ensures powerful torque conversion and consistent performance, making it an invaluable tool for your agricultural needs.
- Product Dimensions : 43 x 7 x 7 inches; 37 Pounds
- Date First Available : August 1, 2024
- Manufacturer : GarveeTech
- Country of Origin : China
