- High-Quality CNC Machined Construction: The gearbox and its components are CNC machined with precision from high-quality materials, ensuring durability and reliability. The use of aluminum alloy for the housing provides strength while maintaining a lightweight design. The smooth anodized black finish not only enhances the appearance but also provides additional protection against wear and corrosion, extending the lifespan of the gearbox.
- Smooth and Efficient Transmission System: The 2-speed transmission system offers versatility in driving performance, allowing you to switch between different gear ratios for varying terrain and driving conditions. The smooth operation of the gearbox ensures efficient power transfer and enhanced control over your 1/10 RC crawler truck. The hardened steel internal gears and heat-treated steel shaft coupling provide strength and durability, ensuring long-lasting performance.
- Two Variants for Different Preferences: The product is available in two variants: Chassis A (with Transmission/Transfer Case) and Chassis B (No Transmission/Transfer Case). This allows you to choose the option that best suits your preferences and specific needs for your RC crawler. Both variants are constructed from aluminum alloy, ensuring lightweight yet robust chassis frames.

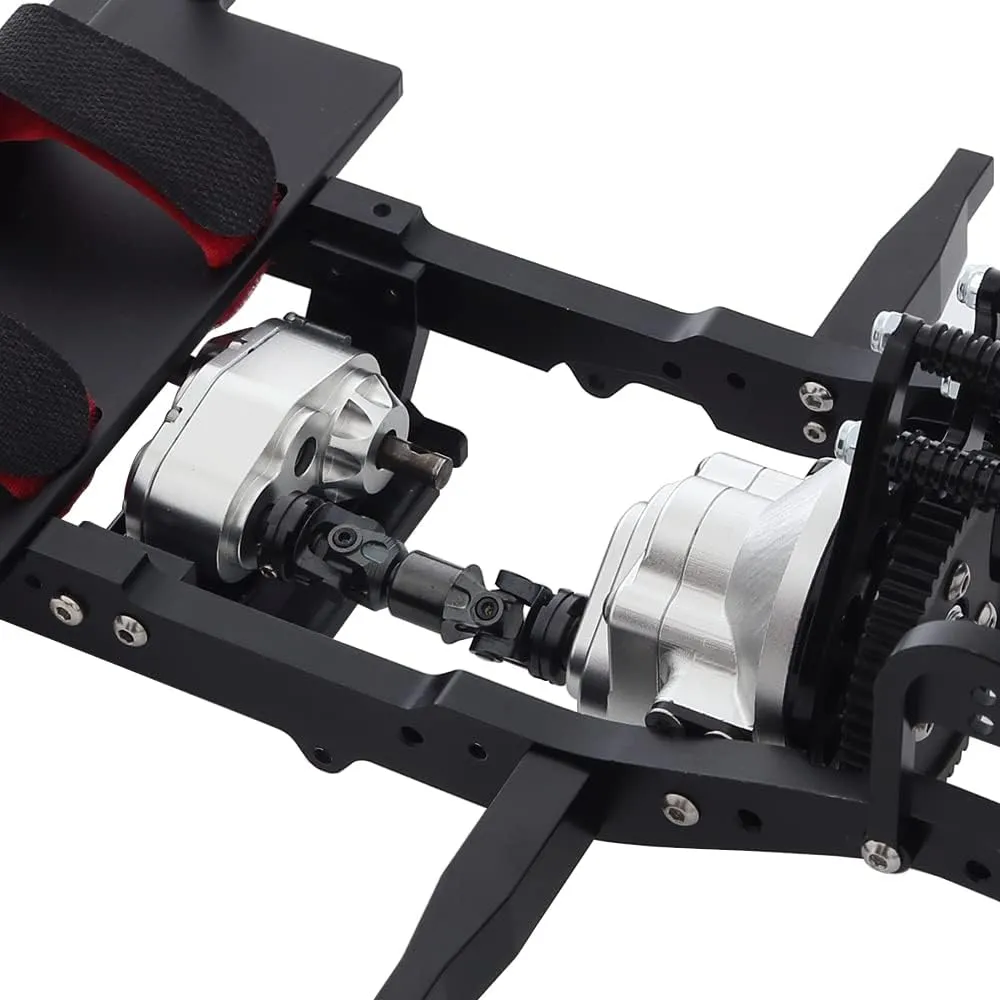

- Well-Designed Transfer Case: The transfer case features an aluminum alloy housing and hardened steel internal gears, providing durability and efficient power transmission. The gear ratio of 1.47:1 enhances torque and crawling capabilities, while the 8-bearing design ensures smooth operation. The inclusion of a skid plate made from aluminum alloy adds protection to the transfer case, safeguarding it against impacts and rough terrains.

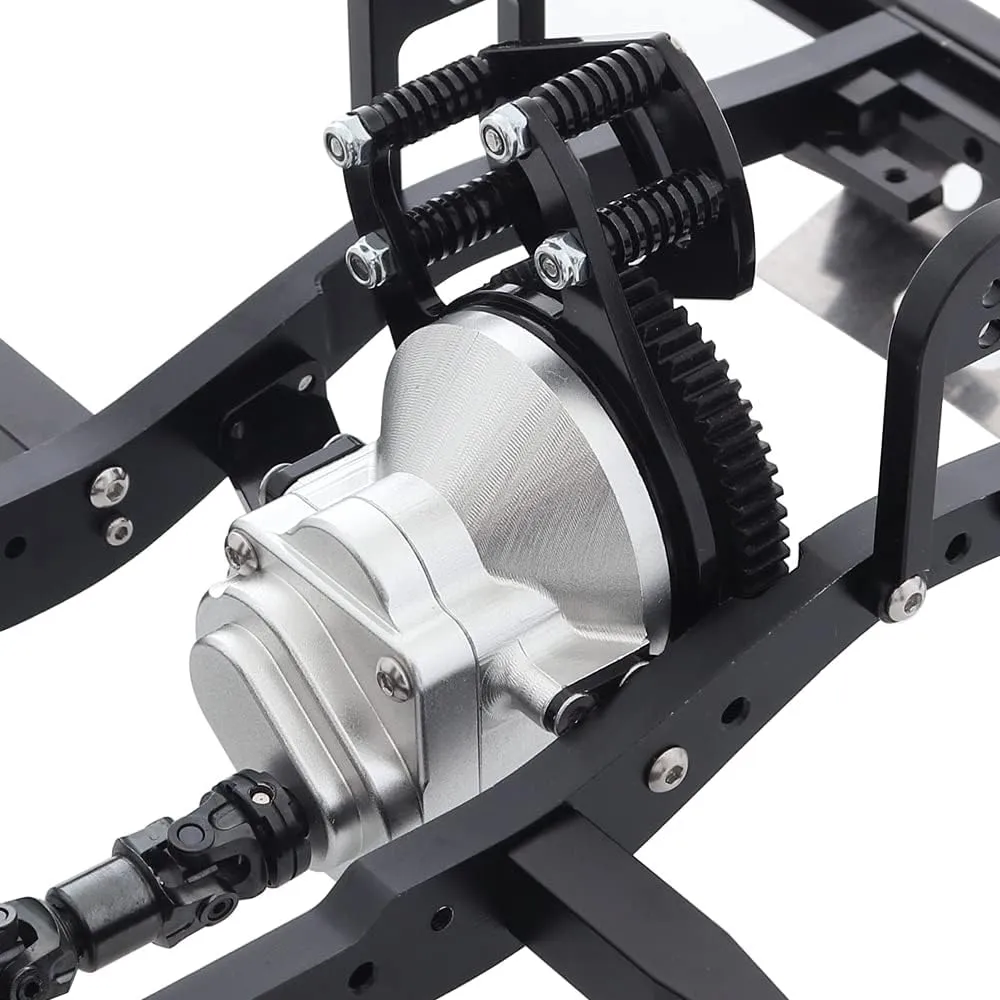

- Durable and Functional Transmission: The transmission is designed for reliability and ease of use. It features an aluminum alloy housing, nylon 60T spur gears, brass 19T pinion gears, and hardened steel internal gears. The clockable motor mounting with 12 different positions allows for flexible motor installation and gearing options. The gear ratio of 5.61:1 optimizes torque and speed for crawling applications. The slipper clutch design provides consistent power delivery and protects the drivetrain from excessive shocks and impacts.
"
Metal RC Car Chassis Frame Kit
CNC Machined
Smooth Anodized Black Finish
Smooth transmission system, fit 1/10 RC Crawler Truck
Item: Chassis A(with Transmission/Transfer Case)
Material: Aluminum Alloy(Radio Box: Plastic)
Length: 424mm/16.69in
Maximum width: 195mm/7.68in
Weight: About 0.88kg
Final Drive Ratio: 8.23:1
Requires Assembly
Item: Chassis B (No Transmission/Transfer Case)
Material: Aluminum Alloy(Radio Box: Plastic)
Length: 424mm/16.69in
Maximum width: 195mm/7.68in
Weight: About 0.54kg
Requires Assembly
Item: Shaft Coupling
Material: Heat Treated Steel
Weight: 22g
Item: Transfer Case
Material:
Housing: Aluminum Alloy
Internal Gears: Hardened Steel
Skid Plate: Aluminum Alloy
Gear Ratio: 1.47:1
8 Bearing design
Output Shaft Diameter: 4.8mm
Weight: 117g

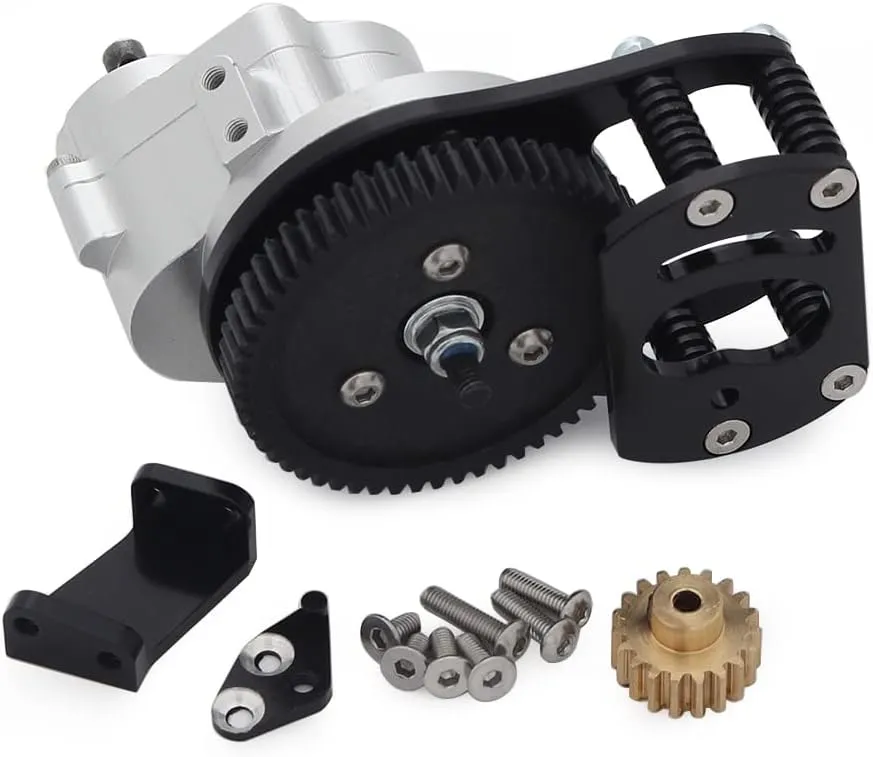

Item: Transmission
Material:
Housing: Aluminum Alloy
60T Spur Gears: Nylon
19T Pinion Gears: Brass
Internal Gears: Hardened Steel
Clockable Motor Mounting (12 different positions)
Single Speed
Gear Ratio: 5.61:1
Slipper Clutch Design
Output Shaft Diameter: 4.8mm
Weight: 200g
"
