- Advantage: Engine Bearings with Re-enforced Nylon (Polymite )Cages.
- This special design can withstand higher load than normall,re-enforced cage can use on higher speed and heavy duty.
- This Ball Bearing designed to be a direct replacement for the bearing in many .21-.28 Nitro Engines.
- This bearing is specially designed to withstand high RPMs that exist in this application.
- This bearing is an open design to allow the oil from the fuel to keep the balls well lubricated.

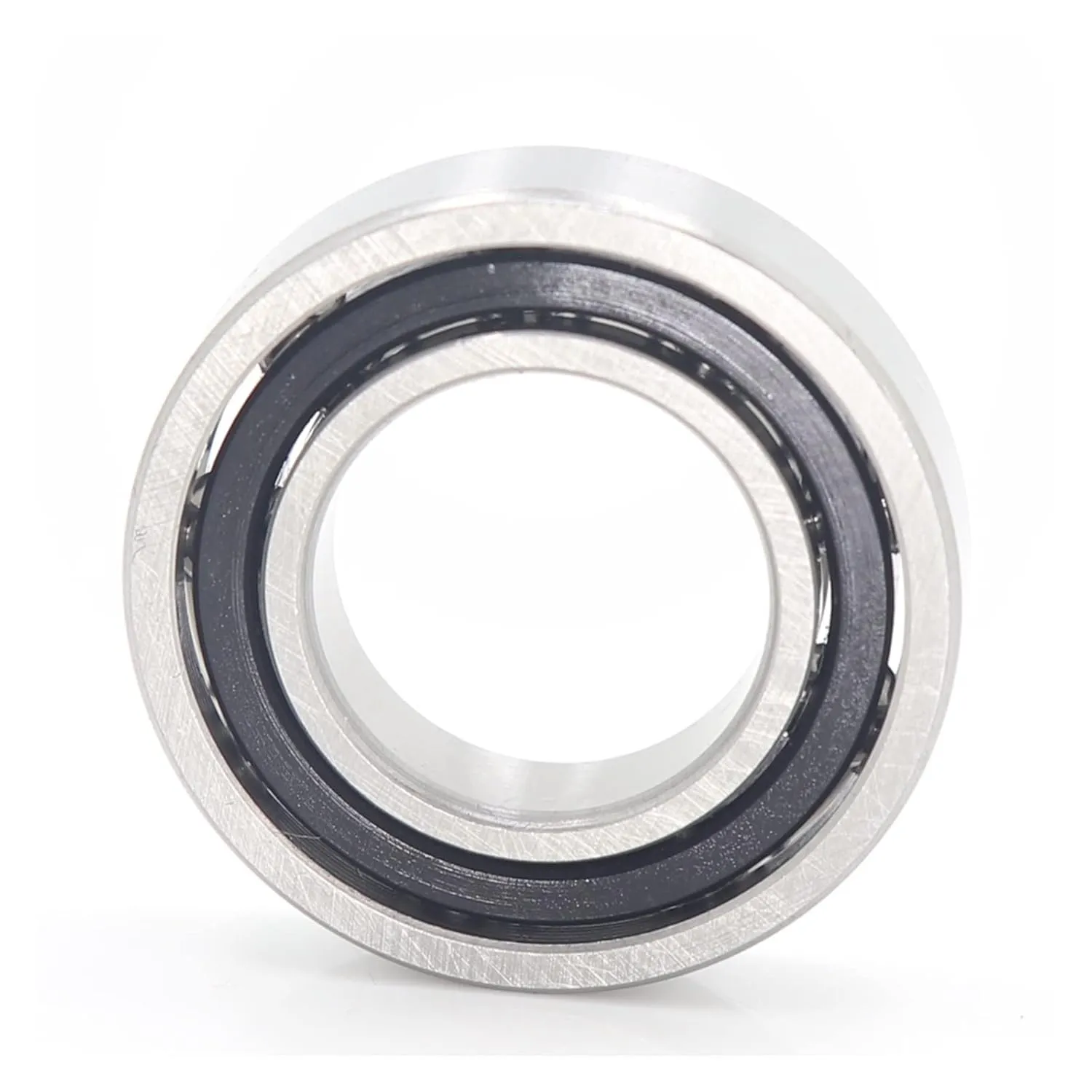

Bearing Specification:
Inside Diameter: 14 mm
Outside Diameter: 25.8 mm
Width: 6 mm
ABEC Rating: ABEC 3/P6
Bearing Material: Chrome Steel 52100
Ball Element Meterial: G10 Stainless Steel Balls
Retainer Material: Polymite Nylon T46
Radial Play: C3
Speed RPM: 45000
Balls: 9 pcs
Dynamic Load(Kgf): 285
Basic Load(Kgf): 140
Working Temp Deg C: 145
Weight(g): 24
Tips:
If you hold the head of the engine with your hand and a rattle sound dissapears then you have a worn out rear bearing. The risks/issues of a bad rear bearing are not holding a tune, crank can get worn, and worst of all the bearing comes apart and eats your piston/sleeve.
Installation: The best way to install is to use a bearing puller/installer, makes a very affordable one. If you place the new bearing in the freezer for 15 minutes it will be easier to install.
Positioning: For proper lubrication, face the open side where you can see the balls to the rear of the motor (not the clutch side).
Break In: For the first run of these bearings, We suggests that you fatten your motor up on the high-end needle so the ceramic balls will seat instead of skidding them.
