Name: WARN 26502 M8000 Series Electric 12V Winch with Steel Cable Wire Rope: 5/16" Diameter x 100' Length, 4 Ton (8,000 lb) Pulling Capacity
SKU: 888446

low-profile design and separate control box allows for a wide range of mounting options
powers load in and out via 100 ft of 5/16 in wire rope;electrical controls: contactor
efficient, 3-stage planetary gear box and automatic direct drive cone brake system
powerful 4.8 hp series wound motor, with a 8,000 lb pull rating and sliding ring gear freespooling clutch

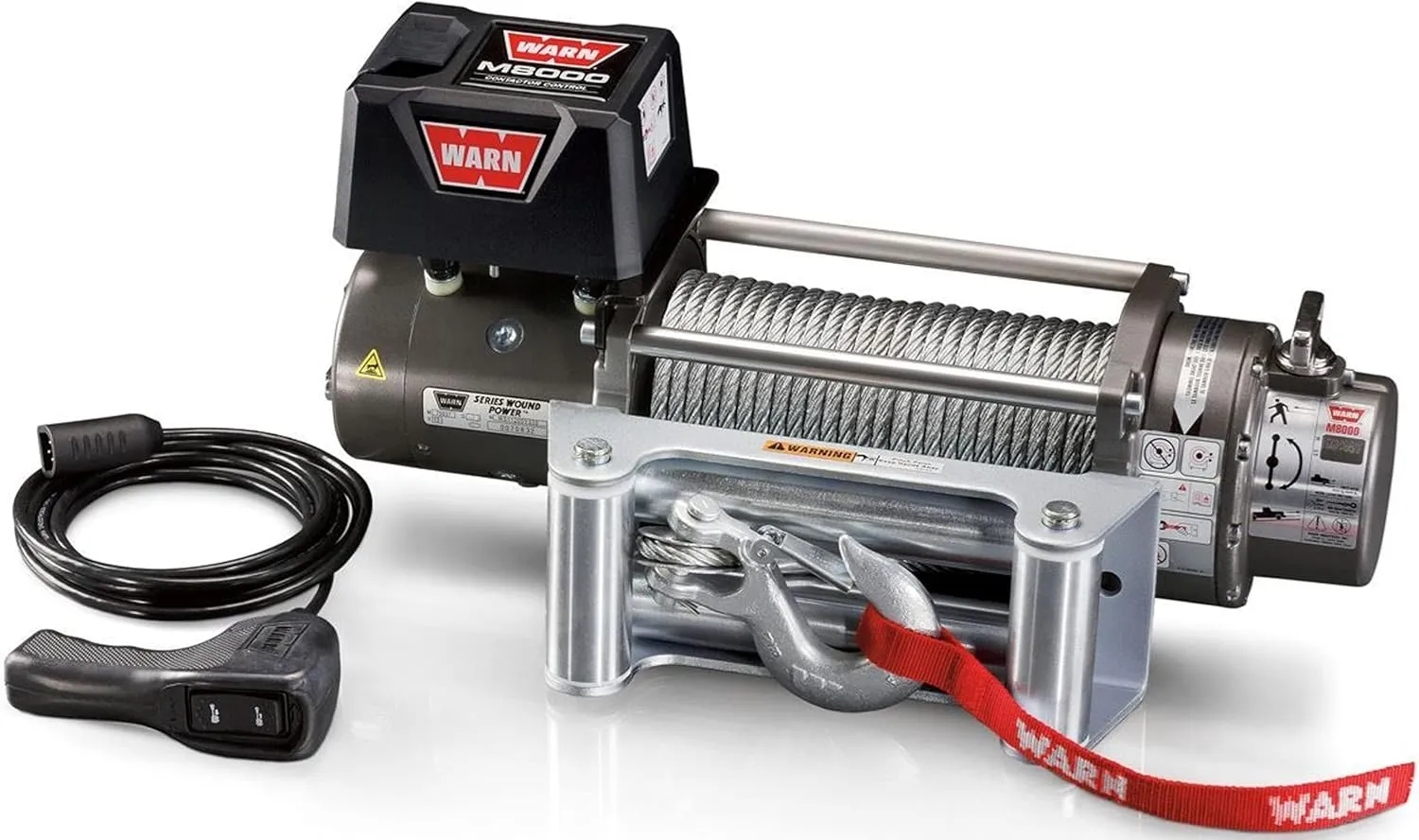

electrical control box and hand-held remote with 12 ft (3.7m) lead
Fit type: Vehicle Specific. Max Amp Draw-435 Amp Draw

Product Description

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs. It is a compact, efficient and robust package that has a powerful 4.8 horsepower Series Wound motor and 3-stage planetary gear train. This winch includes 100-feet wire rope with a roller fairlead. Chip-resistant powder-coated finish. Limited lifetime warranty.

From the Manufacturer

Compact. Tough. An outstanding value. Available with a roller or hawse fairlead and your choice of 80 or 100' of 5/16" diameter wire rope, the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12' (3.7m) lead.

SPECIFICATIONS

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
Fairlead for PN 20910: Hawse
Fairlead for PN 26502, 265022, 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H. (534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
